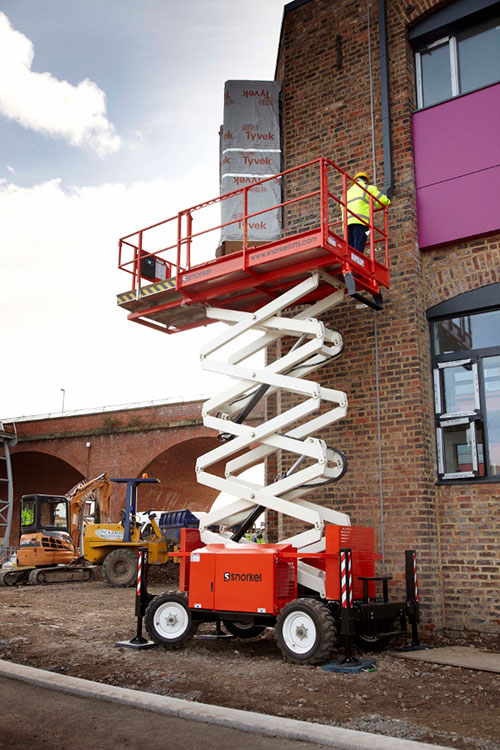

Snorkel Rough Terrain Scissor Lifts S3370RT

Max. working height: 12.0m
Platform capacity: 454kg
Stowed height: 2.7m
Weight: 3,620kg

Add to quote

Description

The Snorkel S3370RT is a compact rough terrain scissor lift that delivers excellent 4 Wheel Drive performance from compact dimensions. Features a roll-out deck extension, high grip types and auto-level outriggers as standard.

Standard Features

4-wheel drive
4 hydraulic outriggers with automatic levelling
Roll-out deck extension
Non-marking foam filled tyres
Proportional controls
Power line to platform
Drive motion alarm
Descent alarm
Manual lowering valve
Flashing amber light
Oscillating axle
Fold-down guardrails
Hour meter & on-board diagnostics display
Dual lanyard attachment points
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max. Working Height	12.0m
Max. Platform Height	10.0m
Platform Size (Stowed)	1.6m x 2.8m
Platform Size (Extended)	1.6m x 4.0m
Extension Deck Length	1.2m
Overall Width	1.8m
Overall Length	3.4m
Stowed Height	2.7m
Min. Height (Guardrails Folded)	2.0m
Ground Clearance	330mm
Platform Capacity (SWL)	454kg
Max. Drive Height	10.0m
Max. Wind Speed	12.5m/s
Max. Drive Speed (Stowed)	4.5km/h
Max. Drive Speed (Elevated)	0.3km/h
Raise/Lower Time	50/60 sec
Gradeability	35%
Max. Outrigger Leveling (Front to Rear)	6º
Max. Outrigger Leveling (Side to Side)	10º
Inside Turning Radius	2.7m
Outside Turning Radius	5.0m
Tyres	27 x 10.5 – 15 foam filled, non-marking
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota D-902 water-cooled diesel 22.5hp Tier 4 Final
Weight	3,620kg

Options

Special paint colours
Cold weather package
Hydraulic generator 110V/240V
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Snorkel OnSite™ telematics

Turning Radius

Snorkel S2770RT/S3370RT/S3970RT Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Denmark provides nationwide coverage for any warranty or technical support required in Denmark. For more information, please contact us.
